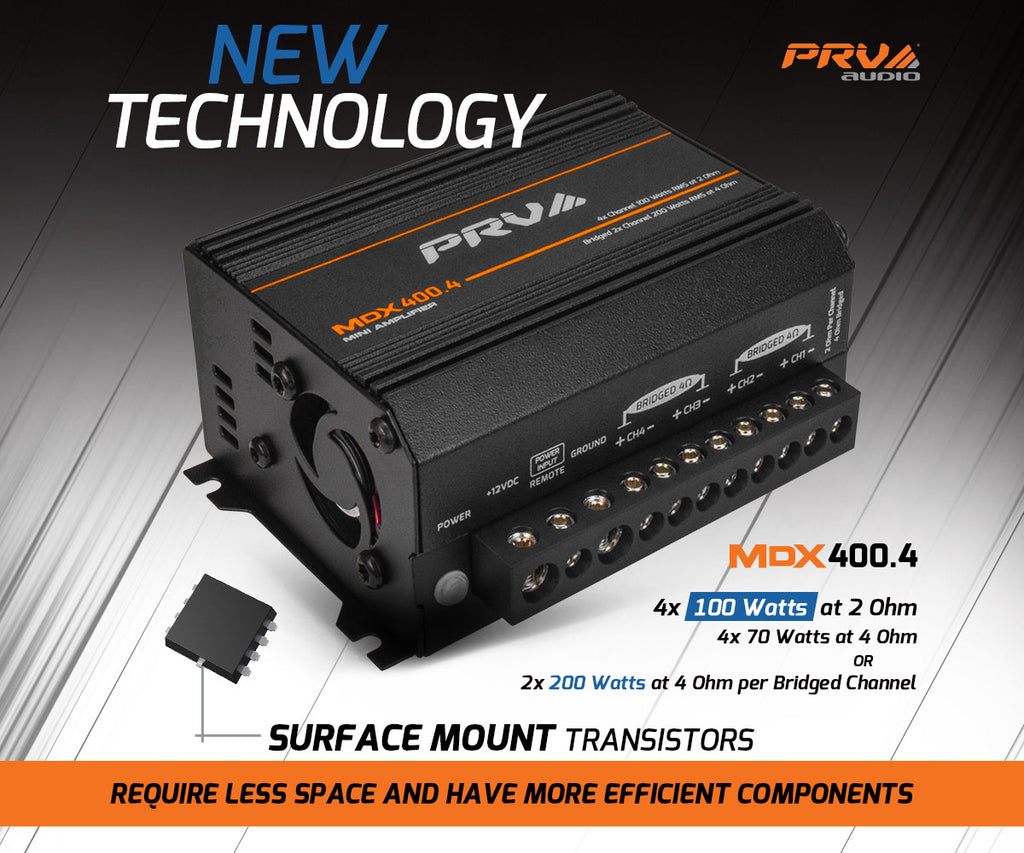

The mini MDX400.4 2 Ohm delivers 400 Watts RMS power over 4 channels in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.
Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.
GENERAL SPECIFICATIONS
| Impedance | 2 Ohm per Channel |
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 100 Watts RMS |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 70 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 200 Watts RMS |
| Average Efficiency | 84% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 20 A |
| Minimal Power Wire Input | (OFC) 8 Gauge wires |
| Built-in Crossover | Fixed HPF & LPF at 80 Hz |
| Minimal Speaker Wire Output | 16 Gauge |
| Frequency Response(-3dB) | 10 - 20,000 Hz |
| Min. Input Sensitivity for Max. Output | 0.2 to 2v |
| Signal Input | RCA Cables |
| Signal to Noise | >90 dB |
| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Mini Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 4.25″ x 3.50″ x 1.95″ |
Part Number: MDX400.4
