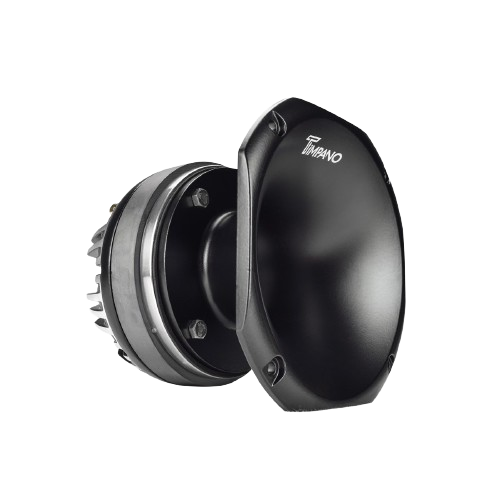

PRO Audio High Frequency Compression Driver with Aluminum Slim Horn – 109 dB
Specs:
450 Watts Max Power
150 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 109 dB
Frequency Response: 1,000 – 20,000Hz
Voice Coil: 2”
Titanium Diaphragm with a 2″ voice coil
Recommended High Pass Filter:
1600 Hz under 225 Watts of Amplifier RMS Power with 18dB Slope
1500 Hz under 150 Watts of Amplifier RMS Power with 12dB Slope
Sizing:
Mounting Depth: 5.08”
Mounting Cutout Diameter: 5.75″
Overall Size: 6.25″ x 6.25″ x 5.39″
Part Number: TPT-DH2000
