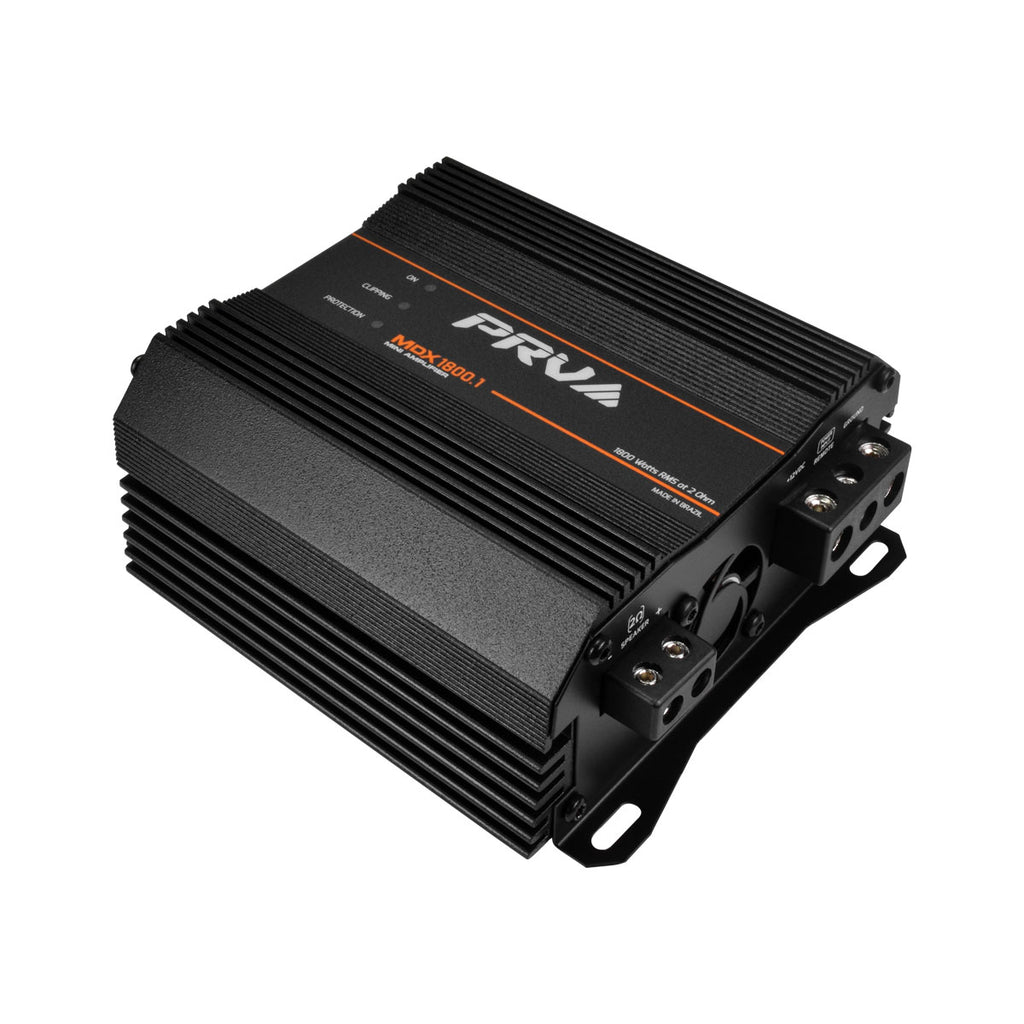

Mini MDX1800.1 2 Ohm delivers 1800 Watts RMS power to its full range 1 channel in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.
- A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 6.60″ Width by 5.90″ Length and only 2.60″ Height.
- Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.
- 1 Channel 1800 watts at 2 Ohm TRUE RMS certified. Full Range Digital Class D Technology, gives you the benefit of wiring 4 speakers and dividing the power, 450 Watts RMS per 8 Ohm Speaker.
- 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
GENERAL SPECIFICATIONS
| Impedance | 2 Ohm |
| Channels | 1 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 1x 1800 Watts RMS |
| Rated RMS Power at 14.0 V at 4 Ohm | 1x 1100 Watts RMS |
| Average Efficiency | 86% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 75 A |
| Minimal Power Wire Input | (OFC) 4 Gauge wires |
| Protection Fuse or Circuit Breaker | 100 Amps |
| Built-in Crossover | Variable HPF 5Hz - 80Hz & LPF 50Hz - 1kHz |
| Variable Gain Bass Boost at 50Hz | 0 to +12dB |
| Minimal Speaker Wire Output | 14 Gauge |
| Frequency Response(-3dB) | 10 - 25,000 Hz |
| Min. Input Sensitivity for Max. Output | 0.2 to 2v |
| Signal Input | RCA Cables |
| Signal to Noise | >90 dB |
| Protection System | Low & High Supply Voltage / Shortage on Output / Low Impedance on Output |
| Heat Sink Type | Mini Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 6.60″ x 5.90″ x 2.60 |
Part Number: MDX1800.1 2ohm
