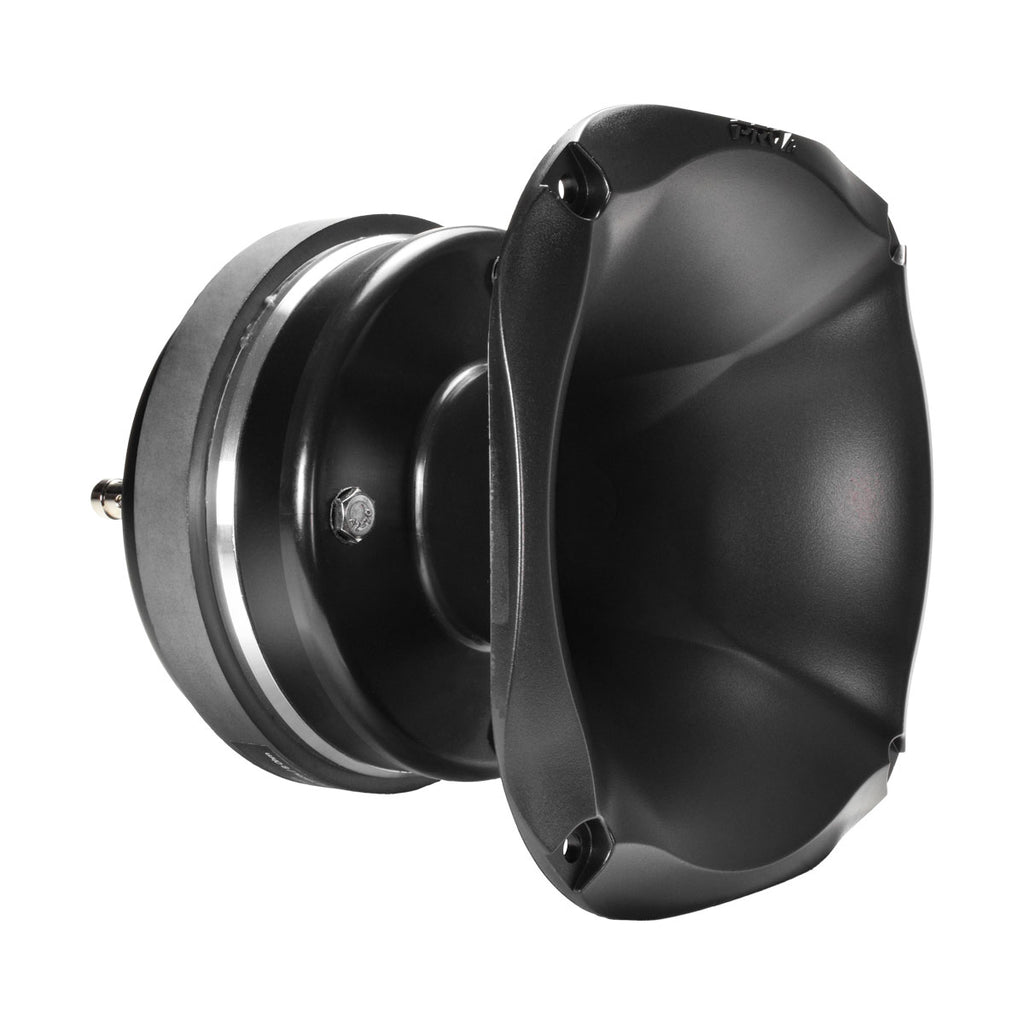

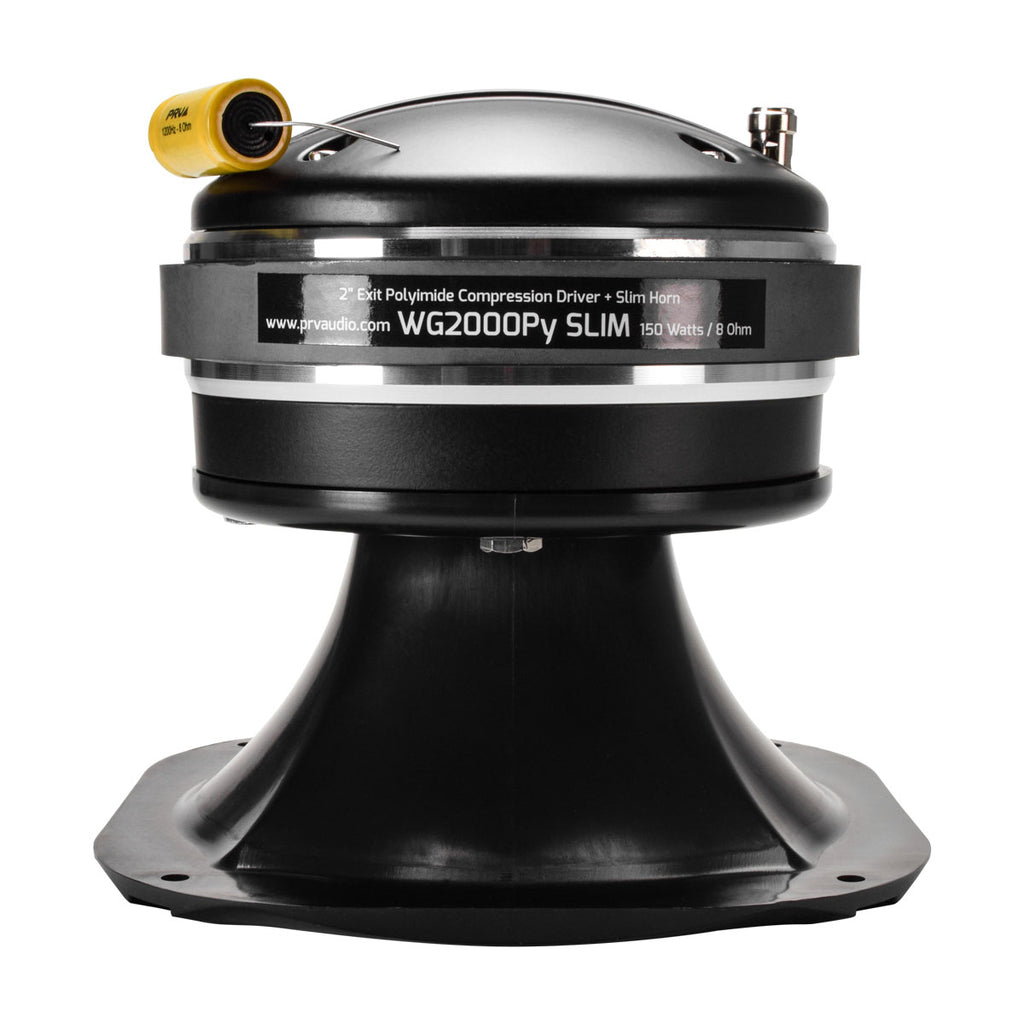

The WG2000Py SLIM is a Shallow mount 2″ horn driver featuring a Polyimide Pro Audio Compression Driver with a 2” exit WGP-14-50X Slim Waveguide.
This is a top-of-the-line horn driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.
- Polyimide diaphragm with large 2.0″ Voice Coil, providing dynamic output along with excellent efficiency – 107 dB Sensitivity
- Mids & Highs 2″ Exit Driver + Shallow Horn WGP14-50X – Perfect as compression driver for car audio
- Crystal clear natural sound with wider response from 1000 to 17,000 Hz
- PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
- Compact driver mounted on slim horn, ideal for tight spaces, increase sound output on your system with this slim solution. Great choice for custom car audio door panels
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 75 Watts |
| Continuous Program Power (RMS)** | 150 Watts |
| Peak Power | 300 Watts |
| Sensitivity 2.83V at 1m | 107 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 1000 Hz 12db Per Octave Crossover |
| Frequency Response at -10dB | 1000 - 17,000 Hz |
| Voice Coil Diameter | 2”(51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 2.10 T |
| Magnet Material | Ferrite |
Part Number: WG2000Py SLIM
